In modern industries, especially those that require ultra-pure water, maintaining the highest standards of water purity is not just preferred—it’s absolutely essential. Whether it’s pharmaceutical manufacturing, microelectronics production, laboratory research, or high-end cosmetic formulation, the presence of even microscopic impurities in water can compromise product integrity, yield, and safety.
As these industries grow increasingly precise and demanding, water treatment technologies must evolve accordingly. Two of the most powerful purification processes—Reverse Osmosis (RO) and Electrodeionization (EDI)—when combined, offer a comprehensive solution capable of achieving water purity levels that meet or exceed global standards.
This article will explore how Two Stage RO systems integrated with EDI units serve as a gold standard in ultra-clean water applications. We'll look into the science behind the process, the key benefits, and the industries that rely on it. Finally, we'll touch on how selecting the right equipment supplier, such as Guangzhou Huayang Machinery Technology Co., Ltd., can make a significant difference in achieving long-term efficiency, reliability, and compliance.
Before diving into the technical processes, it’s important to understand why ultra-pure water (UPW) is so critical in certain industries.
Ultra-pure water is water that has been extensively purified to remove not just suspended solids and bacteria, but also dissolved salts, organics, silica, and trace metals. The target is to achieve extremely low conductivity (close to 0.055 µS/cm), total organic carbon (TOC) content of less than 5 ppb, and minimal microbial presence.
Contaminated water in high-purity environments can lead to:
Malfunctioning medical or lab instruments
Corrosion in delicate equipment
Contaminated pharmaceutical products
Defective semiconductors
Unstable cosmetic formulations
Clearly, standard purification methods like filtration or single-stage RO may not be enough. That’s where the Two Stage RO + EDI combination comes in.
Reverse Osmosis (RO) is a filtration process that uses a semi-permeable membrane to remove ions, molecules, and larger particles from water. Under pressure, water passes through the membrane while impurities such as salts and minerals are left behind.

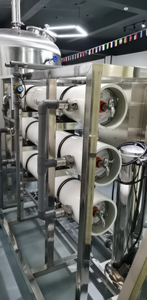

In a Two Stage RO system:
Water first passes through a primary RO membrane (Stage 1), which removes most dissolved solids.
The reject (waste) water from Stage 1 becomes the feed water for Stage 2, which undergoes another round of filtration to extract more clean water.
The result is a significantly higher recovery rate and reduced waste, along with improved permeate (product water) quality. Two Stage RO systems typically achieve water recovery rates of 75–85% and TDS (total dissolved solids) rejection rates above 98%.
Electrodeionization (EDI) is an advanced water purification process that uses electricity, ion-exchange membranes, and resin to remove residual ionized contaminants from water. EDI units are typically placed after the RO system as a polishing step to remove any remaining ions that RO alone might not eliminate.
Water flows through a chamber containing ion-exchange resins.
Positively and negatively charged ions are attracted to oppositely charged electrodes on either side of the chamber.
Special ion-selective membranes allow only specific ions to pass through, removing them from the water stream.
Because EDI regenerates itself using electricity, it eliminates the need for chemical regeneration like traditional mixed-bed deionizers.
The result is consistently high-purity water with resistivity levels of 15–18 MΩ·cm—ideal for ultra-sensitive applications.
Each of these processes—RO and EDI—has strengths, but together they form a synergistic purification system that maximizes efficiency and quality.
Two Stage RO removes the majority of ions, organics, and particulates.
EDI then eliminates the remaining ion traces.
Together, they produce water that meets pharmaceutical-grade or electronic-grade standards.
Traditional water polishing methods often rely on acid and caustic for resin regeneration. EDI is a chemical-free process, making it safer, cleaner, and more sustainable.
Though EDI units are a bigger upfront investment, they:
Reduce waste discharge
Eliminate chemical handling costs
Require less maintenance and downtime compared to mixed-bed systems
Unlike batch systems that must be stopped for chemical regeneration, EDI systems operate continuously, which is vital in industrial settings that require round-the-clock ultra-pure water supply.
Two Stage RO + EDI setups are often necessary to comply with international purity standards such as:
USP (United States Pharmacopeia)
EP (European Pharmacopoeia)
ASTM standards for electronic-grade water
ISO 22716 for cosmetics
In pharma production, purity equals safety. Injectable drugs, IV solutions, and oral medications require Water for Injection (WFI) or Purified Water (PW), which must be free of ions, bacteria, and endotoxins.
Two Stage RO with EDI systems ensure compliance with Good Manufacturing Practices (GMP) and meet stringent pharmacopeia standards.
Microchips, silicon wafers, and circuit boards are vulnerable to contamination at the molecular level. Even one impurity can cause product failure. The ultra-low conductivity water from RO+EDI systems is essential in rinsing and etching processes.
Research labs dealing with cell cultures, DNA sequencing, or spectroscopy need highly stable water for reproducible results. RO+EDI systems deliver water with minimal variability, ideal for lab use.
In beauty product formulation, water serves as a solvent, carrier, or even a main ingredient. Impure water can compromise shelf life, stability, and safety. RO+EDI ensures microbiologically and chemically pure water for high-end cosmetic manufacturing.
Boiler feed water in power plants must be free of hardness and ions to prevent scaling and corrosion. RO+EDI-treated water supports long equipment life and efficient thermal cycles.
The success of any water purification system begins with accurate feed water analysis. This helps determine:
The appropriate RO membrane type
Pre-treatment needs (e.g., softening, filtration)
Flow rates and recovery settings
Your system should be sized based on:
Required product water volume (liters/hour or m³/day)
Application-specific purity standards
Potential future scalability
Work with an experienced supplier who can design a customized system layout that includes pre-treatment, RO stages, and EDI polishing.
RO membranes and EDI modules require regular cleaning and monitoring for fouling or scaling.
Real-time conductivity and TOC sensors should be installed.
Develop a preventive maintenance plan to ensure long-term performance and system uptime.
Ensure your system setup complies with local and international standards. Documentation, validation, and periodic calibration are essential in regulated industries like pharma and food.
Scaling or Fouling: Proper pre-treatment and periodic cleaning-in-place (CIP) procedures help prevent damage to RO membranes.
High Operating Costs: EDI units reduce the cost of chemicals and waste disposal. Though initial costs are higher, operational savings quickly offset them.
Complex Installation: Partnering with an experienced supplier ensures a smooth and efficient installation process with the right balance of automation and control.
The combination of Two Stage Reverse Osmosis and Electrodeionization represents one of the most effective solutions for ultra-pure water generation. This system not only meets the most rigorous purity standards but also supports environmental goals by minimizing chemical use and water waste.
In industries where water quality directly impacts product performance, safety, and compliance, investing in a high-quality RO+EDI system is not just beneficial—it’s essential.
For organizations seeking reliable, high-efficiency, and customizable water treatment solutions, Guangzhou Huayang Machinery Technology Co., Ltd. stands out as a trusted manufacturer. With a deep understanding of industrial needs and a commitment to technological innovation, Huayang offers a range of advanced Two Stage RO with EDI systems tailored for ultra-clean applications.
Their expertise in system design, membrane technology, and EDI integration ensures that each installation delivers peak performance with long-term reliability. Whether you operate in pharmaceuticals, cosmetics, food processing, or high-tech manufacturing, Huayang provides the equipment, support, and peace of mind to help you achieve your water purity goals.
